Product Specification

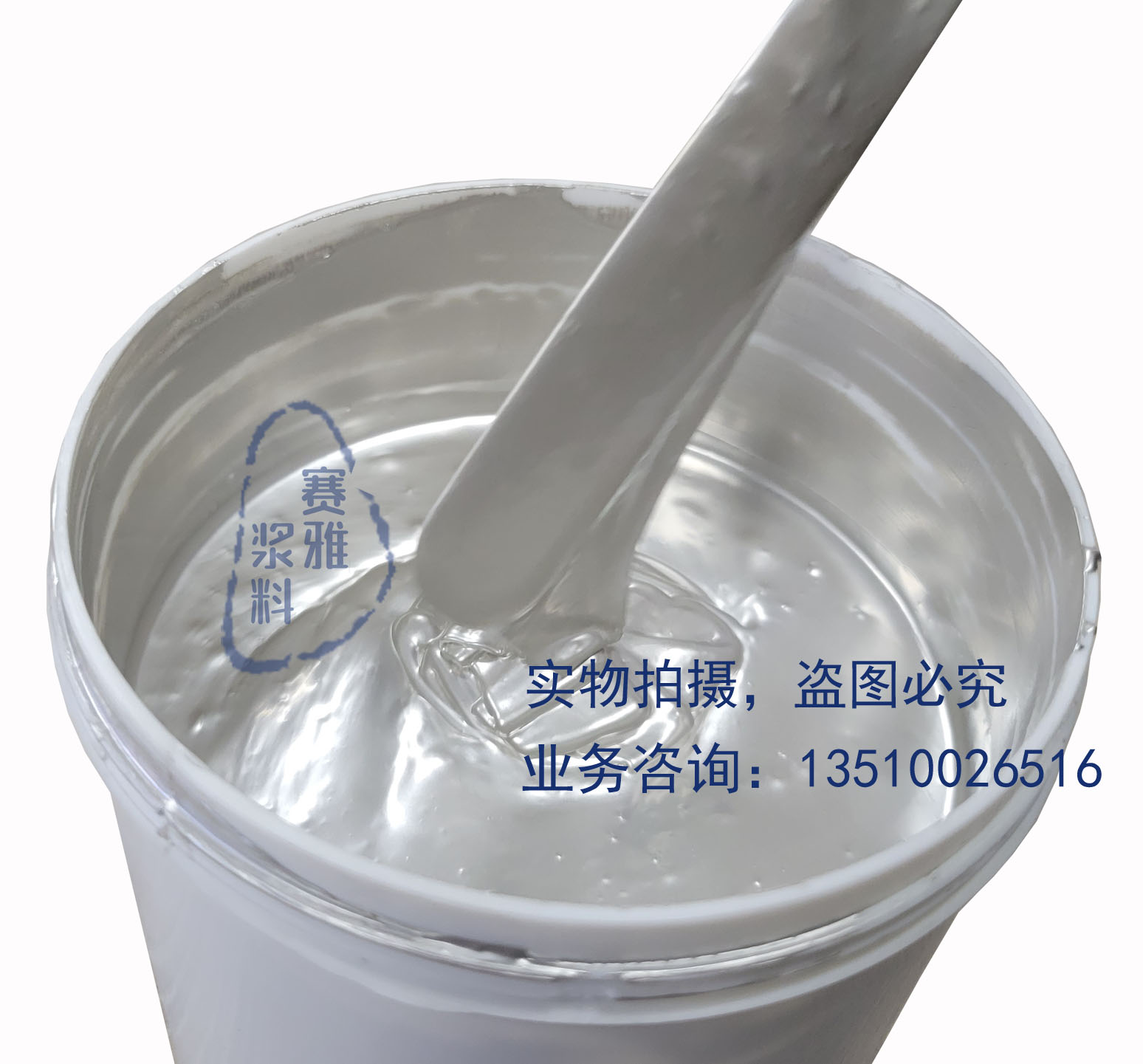

| Product: | Conductive Silver Paste | ||||
| Part Number: | 01L-2211 |
Application Scope :
The single-component conductor paste series is widely applicable in various fields including
thin-film switches, flexible printed circuits, notebook keyboard circuits, mobile phone keyboard
shielding lines, multilayer circuit printing, RF interference shielding, RFID, toy circuit printing, and
contact printing. It can be used on substrates such as alumina ceramics, microcrystalline glass
ceramics, PET, and PC, providing excellent conductivity and film adhesion. The product features good
printability, oxidation resistance, flexibility, and strong adhesion. Its conductivity remains stable even
after processing or bending during product use. It is suitable for both screen printing and spraying.
Usage Conditions :
| Substrate | Ceramic substrates, PET, polyester films, and other sheet materials | |||||
| Usage Method | 200-250 mesh screen printing | |||||
| Leveling | Level at room temperature for 3-5 minutes (time adjusted based on actual leveling conditions) |
|||||
| Solidify | In an incubator at a constant temperature of 80-120°C for 8-30 minutes (For reference only. The actual baking temperature and time can be adjusted as needed.) |
|||||
| Thinner | ST-1001 | |||||
Characteristics :
1. Paste Characteristics :
| Characteristic | Standard | Test Method And Conditions | ||||
| 1 | Fineness | ≤8μm | FOG test | |||
| 2 | Viscosity | 80-220Pa.s | Brookfield HBT (Boli Fei) viscometer, rotor model SC4-14/6R, operates at 10rpm and maintains a viscosity range of 25±1°C, with adjustable settings to meet user requirements. |
|||
| 3 | Solid Content |
70% | Silver ，Glue | |||
2. Characteristics After Curing :
Under the condition of 1 sintering, Check fired film produced under the conditions specified in 1）
| Characteristics | Standard | Test Method And Conditions | ||||
| 4 | Resistivity | ≤30mΩ/□ | The cured film thickness is 8-20μm, and the test pattern size is 100mm*1mm. |
|||
| 5 | Hardness | 2H | Pencil hardness | |||
| 6 | Adhesion | Not fall off | 3M 600#Tape 90° Pull | |||
Save Conditions And Validity Period :
The product shall be stored in a sealed container at an ambient temperature of 5-15°C, with a shelf
life of six months from the date of shipment.
Packaging Method :
Standard packaging, 1000g/can; samples are available in 200g small can packaging.
