Specification
|
product: |

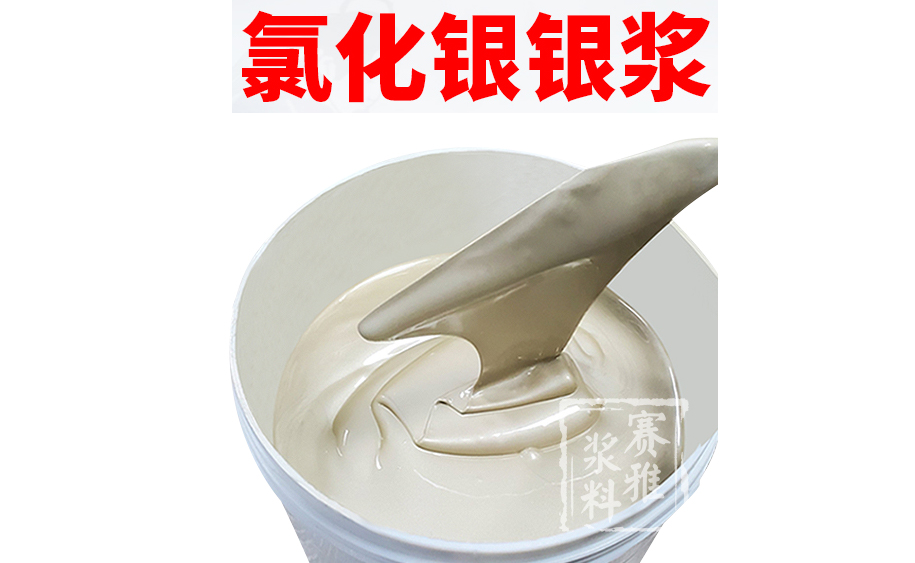

Ag/AgCl paste |
|
Part number: |
01L-7211 |
※ Electrodes for biological sensors such as electrocardiographs and electroencephalographs
※ Excellent ductility
※ Heating and curing at 80 to 200 degrees Celsius
※ Ceramic substrates, PET, PC, polyester films, etc. sheets
※ Print quality is excellent.
Main features of silver paste chloride silver
|
Substrate |
Suitable for Ceramic, Pet, PI，Pc etc |
|
|
Method of use |
250-350 mesh stainless screen |
|
|
Leveling |
3-5min minutes at room temperature |
|
|
Curing conditions |
In a constant-temperature oven, or with continuous hot air (either of these conditions is sufficient) | |
|
80℃ |
60分钟/mins |
|
|
120℃ |
20分钟/mins |
|
|
150℃ |
10分钟/mins |
|
|
180℃ |
5分钟/mins |
|
|
Fineness |
≤5μm |
FOG test |
|
Viscosity |
100-180Pa.s |
Brookfield HBT utility cup and spindle (SC4-14/6R), 10rpm, 25±1℃， Brookfield HBT |
|
content |
65-80% |
银 Silver，Glue |
|
Adhesion |
Not fall off |
3M 600#Tape 90°Pull |
/Application:
Silver chloride electrode paste, used for bio-sensor electrodes in electrocardiograms, electroencephalograms, etc.
|
Substrate |
Suitable for Ceramic, Pet, PI，Pc etc |
|
|
Method of use |
250-350 mesh stainless screen |
|
|
Leveling |
3-5min minutes at room temperature |
|
|
Curing conditions |
In a constant-temperature oven, or with continuous hot air (either of these conditions is sufficient) | |
|
80℃ |
60分钟/mins |
|
|
120℃ |
20分钟/mins |
|
|
150℃ |
10分钟/mins |
|
|
180℃ |
5分钟/mins |
|
|
Fineness |
≤5μm |
FOG test |
|
Viscosity |
100-180Pa.s |
Brookfield HBT utility cup and spindle (SC4-14/6R), 10rpm, 25±1℃， Brookfield HBT |
|
content |
65-80% |
Silver，Glue |
|
Adhesion |
Not fall off |
3M 600#Tape 90°Pull |
Storage condition and Term of validity
The product shall be guaranteed for 6 months after shipping date, keep tightly under at 5-15℃
Packaging method：
Standard package 1000g/can，if you need sample to test, available 200g with small package
Common materials used in bio-electrode testing circuits
| Part Number | Ingredients |
Application field, Main feature |
|
01L-7211 |
Silver chloride / Silver |
Electrodes for biological sensors such as electrocardiographs and electroencephalographs It can be printed by screen printing, spot coating, or sprayed after dilution (a special diluent ST1001 needs to be added) |
|
Silver paste 01L-2211D |
Low-temperature silver paste | It can be printed by screen printing, spot coating, or sprayed after dilution (a special diluent ST1001 needs to be added) ② It can provide excellent conductivity and film adhesion properties on hard substrates such as ceramics, glass, and PCBs, as well as on soft substrates like PET, PC, and PI. ③ It has excellent printability, antioxidant properties, flexibility, and extremely strong adhesion. It can be bent, and the resistance will not change significantly after bending. ④ Film switches, flexible printed circuits, keyboard circuits, shielding lines, multi-layer line printing, radio frequency interference shielding, RFID, toy, learning machine circuits, etc. in the fields of printing and contact printing. ⑤ After curing, it can withstand temperatures up to 200°C, and can withstand temperatures up to 300°C for a short period. |
|
Carbon slurry08L23-011 |
碳浆 | Ceramic substrates, PET, polyester films and other sheet materials In an oven maintained at a constant temperature ranging from 80 to 150 degrees Celsius, for 10 to 30 minutes. |
|
Outer coating09L-PET |
|
Used for protecting the outer layer of flexible circuits such as PET and PI, available in blue and colorless options. |
