Specification
|
product: |

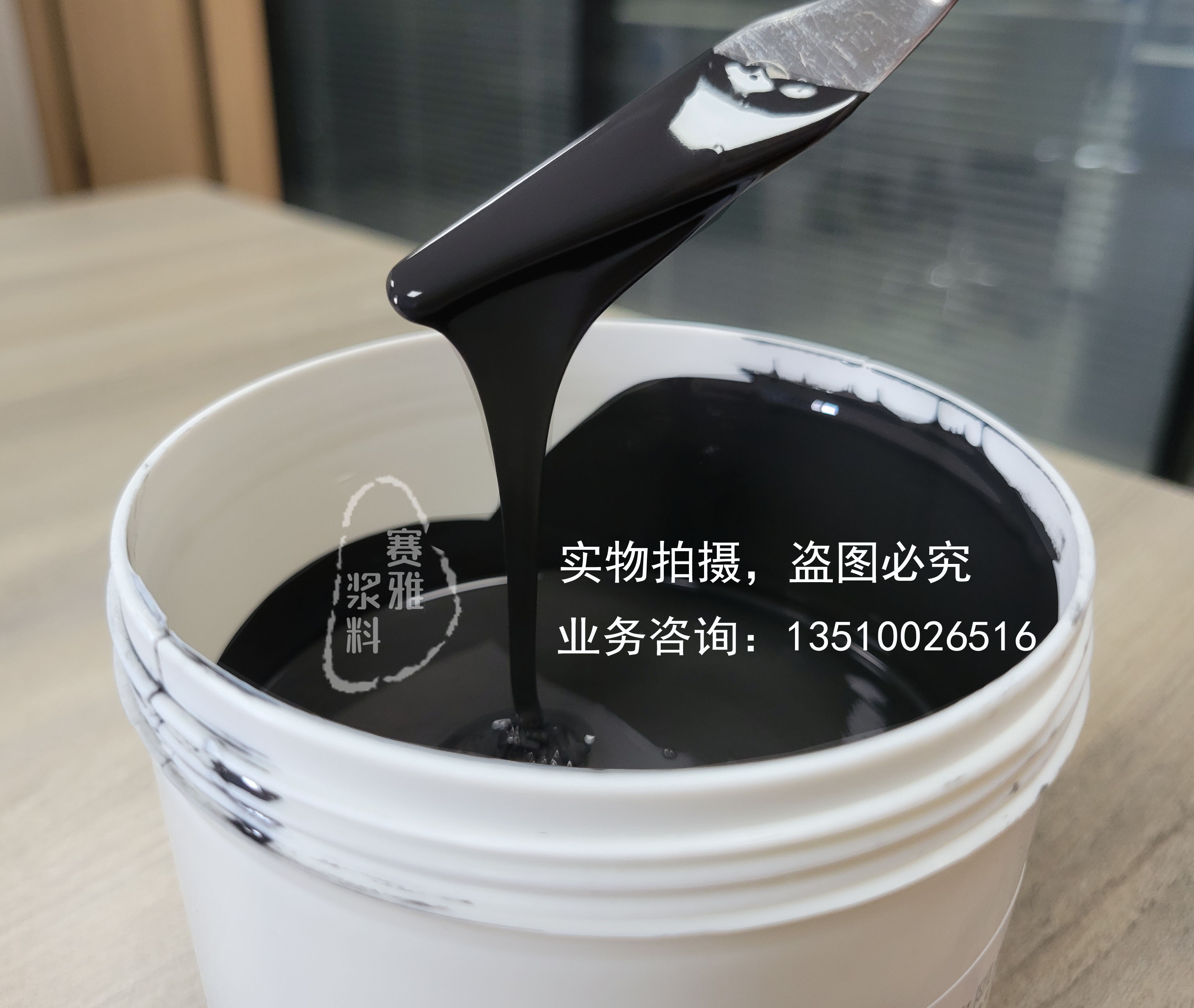

High-power Resist paste |
|
Part number: |
05H06 series |
Application:
The resistor paste applies to High power Resistor.
Operating conditions：
|
Substrate |
96% alumina、surface roughness 3-5μm |
|
Printing |
200-250 mesh stainless screen |
|
Levelling |
5-15min minutes at room temperature |
|
Drying |
100 |
|
Firing Condition |
Atmospheric firing in belt furnace with peak time of 9-11 Minutes at 850± |
|
Thinner |
ST1000，ST1001 |
Characteristics：
Paste Characteristics：
|
Characteristic |
Standard |
Test method and conditions |
|
|
1 |
Fineness |
≤8μm |
FOG test |
|
2 |
Viscosity |
100-200Pa.s |
Brookfield HBT utility cup and spindle (SC4-14/6R), 10rpm, 25± Brookfield HBT |
Characteristics after firing：
Check fired film produced under the conditions specified in 1）, (Film thickness is 8
|
Characteristics |
Standard
|
Test method and conditions |
|
|
3 |
Appearance |
Compact and unknit |
Eyeballing |
|
4 |
Resistivity |
As below form |
Standard film thickness is |
|
TCR |
As below form |
HTCR 25 |
|
|
ESD |
As below form |
2000V 1s 5times |
|
|
|
STOL |
As below form |
Unit Power 1W/mm2 2.5 rating voltage（Max 1000V） |
|
|
Power Load |
As below form |
Unit Power 1W/mm2,2 hours |
|
Product NO
|
（Ω/□） |
Tolerance （Ω/□） |
Main Compositions |
TCR （ppm/℃） |
ESD （%） |
Firing Temp（℃） |
|
05H06-0R2 |
0.2 |
±15% |
Ag、 Pd 、RuO2 |
-200～+700 |
|
850 |
|
05H06-1R0 |
1.0 |
±15% |
Ag、 Pd 、RuO2 |
-200～+500 |
||
|
05H06-4R0 |
4.0 |
±15% |
Ag、 Pd 、RuO2 |
±100 |
±1
|
|
|
05H06-6R0 |
6.0 |
±15% |
Ag、 Pd 、RuO2 |
|||
|
05H06-8R0 |
8.0 |
±15% |
Ag、 Pd 、RuO2 |
|||
|
05H06-011 |
10 |
±15% |
RuO2 |
|||
|
05H06-021 |
20 |
±15% |
RuO2 |
|||
|
05H06-101 |
100 |
±15% |
RuO2 |
|||
|
05H06-102 |
1K |
±15% |
Pb2Ru2O6 |
|||
|
05H06-103 |
10K |
±15% |
Pb2Ru2O6 |
|||
|
05H06-104 |
100K |
±15% |
Pb2Ru2O6 |
|||
|
05H06-105 |
|
±15% |
Pb2Ru2O6 |
|||
|
05H06-106 |
|
-30% |
Pb2Ru2O6 |
±200 |
Storage condition and Term of validity
The product should be stored in a sealed manner at an ambient temperature ranging from 5 to 25 degrees Celsius. The validity period is six months from the date of shipment.
Packaging method：
