Specification
|
product: |

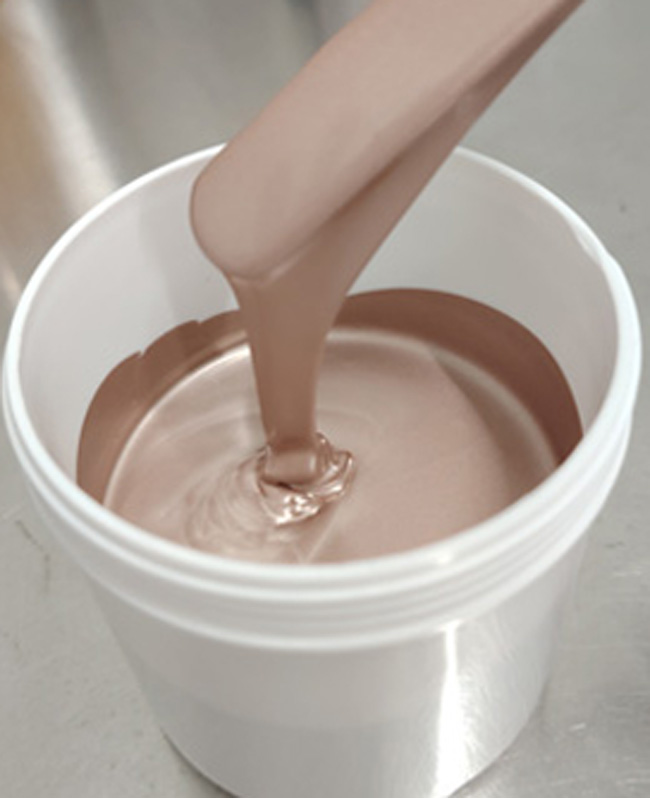

Copper paste |
|
Part number: |
25L-2908A |
※ Room temperature rapid curing (able to conduct electricity without heating)
※ Suitable for flexible substrates, ceramics, glass, metals, etc.
※ The operation is simple.
※ Soldering, scraping, and dilution can be followed by spraying. ※ High copper content, low resistance
※ Good adhesion
Application:
One-component conductor paste series, a conductive Copper paste for fast-drying circuit repair. This slurry has a wide range of application substrates (soft substrates such as PET, glass, ceramics and hard substrates), and has good matching performance with the substrate, and the electrode made with this slurry has a bright, delicate appearance and dense structure after curing.
Operating conditions：
|
Substrate |
PET、PI 、glass 、ceramic, metal, etc |
|
Method of use |
Dispensing ( by needle cylinder, etc.) ，scraping |
|
Drying conditions |
After construction, it can be dried by drying in the air. (Generally, it can be dried in 10~30 minutes, and it can be self-dried after 2 hours, the longer the time, the smaller the resistance of the connection). If possible, it can be baked at a temperature of less than 150 ° C, or accelerated ventilation can accelerate curing. (The specific baking temperature and baking time can be set according to actual needs, generally 5-20 minutes) |
|
|
ST-1001 |
|
Thinner |
|
Characteristics：
Paste Characteristics：
|
Characteristic |
Standard |
Test method and conditions |
|
|
1 |
Fineness |
≤5μm |
FOG test |
|
2 |
Viscosity |
120-320Pa.s |
Brookfield HBT utility cup and spindle (SC4-14/6R), 10rpm, 25±1℃ ,
|
Storage condition and Term of validity
The product shall be guaranteed for 3 months after shipping date, keep tightly under at 5-15℃
Packaging method：
Standard packaging, 20 grams/10ml syringe, other sizes available upon request.
Notes:
After taking it out from the refrigerator, it should be left at room temperature until the temperature is balanced before being opened and used. (It is generally recommended to take it out 4 hours before use and leave it at room temperature.)
b. This slurry contains organic solvents. When using it, ensure good ventilation; avoid contact with eyes, skin or clothes, and keep away from fire sources or flammable substances.
If there is any contact, please clean it with a cleaning agent.
