Product Specification

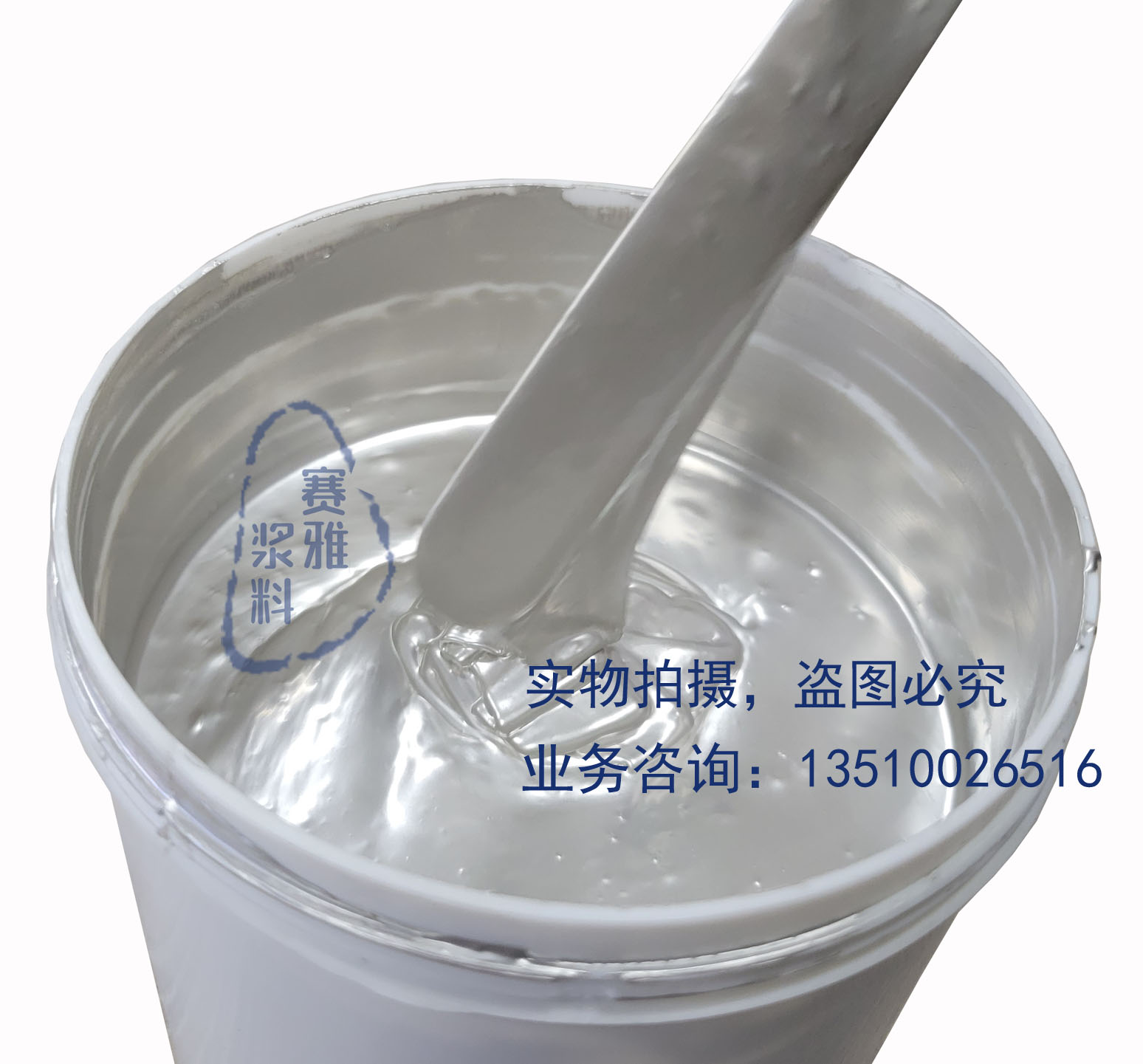

| Product: | Fast-Dry Silver Paste | ||||
| Part Number: | 01L-2908A |
※ Rapid curing at room temperature (conductive without heating)
※ Compatible with flexible substrates, ceramics, glass, metals, etc.
※ Easy to use
※ Applyable by dispensing, brushing, or spraying after dilution
※ High silver content with low resistance
※ Excellent adhesion
Application Scope :
A series of single-component conductive pastes, one of which is a fast-drying conductive silver paste
for circuit repair. This paste has a wide range of application substrates (such as PET, glass, ceramics,
and other soft or hard substrates), demonstrating excellent compatibility with these materials.
Electrodes fabricated using this paste exhibit a bright, fine appearance and dense structure after
curing.
Usage Conditions :
| Substrate | Substrates such as PET, PI, glass, ceramics, and metals | |||||
| Usage Method | Spotting, Scraping | |||||
| Solidify | After construction, it can dry naturally when exposed to air. (Generally, surface drying takes 10-30 minutes, and complete drying occurs within 2 hours. The longer the exposure time, the lower the resistance of the connection will be.) If conditions permit, baking at temperatures below 150°C is recommended; alternatively, accelerated curing can be achieved through enhanced ventilation. The specific baking temperature and time can be adjusted according to actual needs, generally ranging from 5 to 20 minutes. |
|||||
| Thinner | ST-1001 | |||||
Characteristics :
Paste Characteristics :
| Characteristic | Standard | Test Method And Conditions | ||||
| 1 | Fineness | ≤5μm | FOG test | |||
| 2 | Viscosity | 120-320Pa.s | Brookfield HBT (Boli Fei) viscometer, rotor SC4-14/6R, 10 rpm, with adjustable viscosity at 25±1°C according to user requirements. |
|||
Save Conditions And Validity Period :
The product shall be stored in a sealed container at an ambient temperature of 5-15°C, with a shelf
life of 3 months from the date of manufacture.
Packaging Method :
Standard packaging, 20g/10ml syringe vial, other capacities available for repackaging as required.
Matters Need Attention :
a. After removal from the refrigerator, the product should be left at room temperature until
temperature equilibrium is achieved before opening and use. (It is generally recommended to
remove and place at room temperature 4 hours prior to use).
b. This slurry contains organic solvents and should be used in well-ventilated areas. Avoid contact
with eyes, skin, or clothing during use, and keep away from sources of ignition or burning
materials.
If contact occurs, clean with a cleaning solution.
