Specification
|
product: |

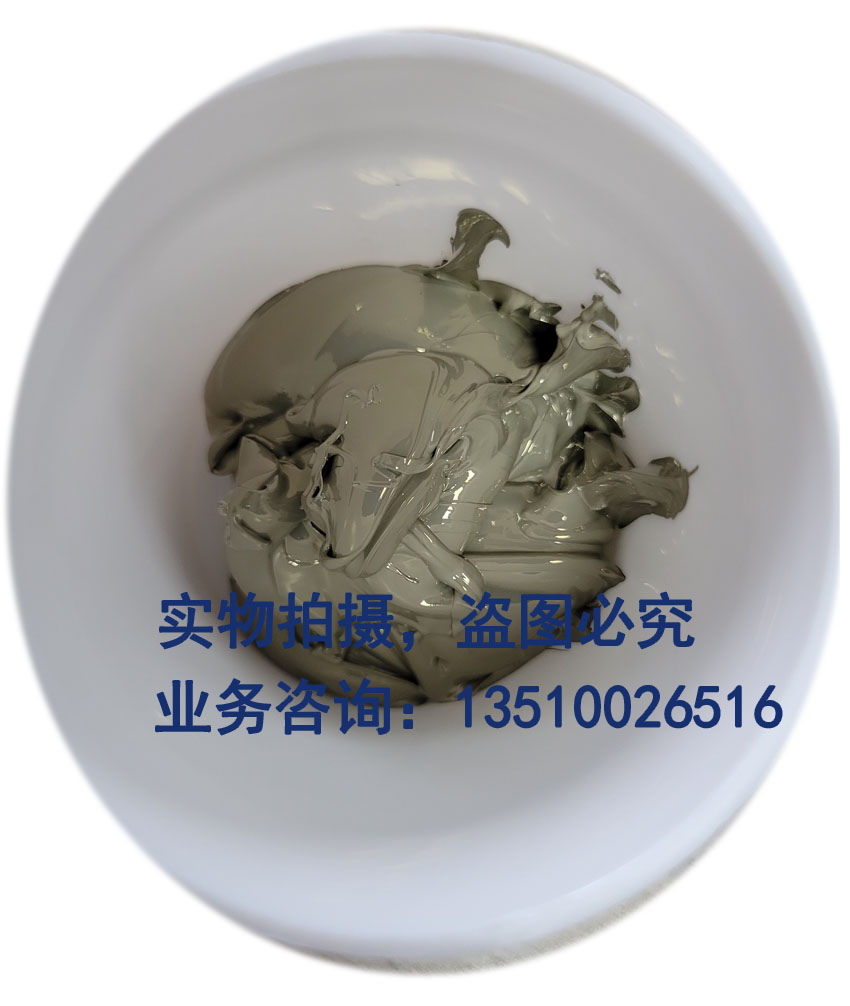

Ag Pt paste (Pt5%) |
|
Part number: |
03H-1805 |
Application:
Suitable for chip resistor、thick film sensor electrode.
Operating conditions：
|
Substrate |
Alumina ceramic |
|
Printing |
200-300 mesh stainless screen |
|
Levelling |
5-15min minutes at room temperature |
|
Drying &Sintering |
100-150℃ 10-15 min Atmospheric firing in belt furnace with peak time of 10 mins at 850℃ |
|
Thinner |
ST-1000 |
Characteristics：
Paste Characteristics：
|
Characteristic |
Standard |
Test method and conditions |
|
|
1 |
Fineness |
≤5μm |
FOG test |
|
2 |
Viscosity |
130-280Pa.s |
Brookfield HBT utility cup and spindle (SC4-14/6R), 10rpm, 25±1℃，
Brookfield HBT |
Characteristics after firing：
Check fired film produced under the conditions specified in 1）, (Film thickness is 8-12mm.)
|
Characteristics |
Standard |
Test method and conditions |
|
|
3 |
Resistivity
|
≤10mΩ/□ |
Test pattern 0.6mm×60mm |
|
4 |
Adhesion strength |
|
Peel Test: 0.5mmφ Tin plated Cu wire soldered on 2mm×2mm Pad. Solder: 96.5Sn/0.5Cu Mildly activated flux used. |
|
Initial |
≥46.5N |
||
|
Ageing |
≥26.7N |
Ageing: 150℃×24hrs |
|
Storage condition and Term of validity
The product shall be guaranteed for 1 year after shipping date, keep tightly under at 5-25℃
Packaging method：
Standard package 1000g/can，if you need sample to test, available 200g with small package.
Material Composition List:
| Compound Name |
Percentage by mass（%） |
| Silver |
70-90 |
| Palladium |
3-10 |
|
Glass powder Boron oxide |
3-6 ＜0.1 ＜0.5 ＜0.2 ＜0.1 ＜2.0 ＜1.0 ＜0.6 ＜0.2 |
| Ethyl cellulose |
＜4 |
| Linalool |
＜20 |
